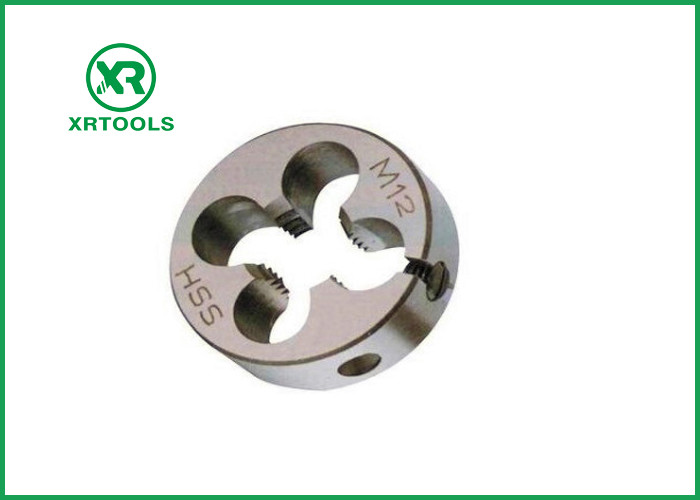

| Product Name | ISO4230 NPT Threading Die,thread die,round die(INCH size round dies) |
| Material | Alloy Steel, HSS(M2,M42,M35) |
| Type | Round Dies, Open Mouth Dies, Adjustable Die;Machine Die,Hand Die |
1. Description
| Product Name | Threading Die,thread die,round die(INCH size round dies) |
| Material | Alloy Steel, HSS(M2,M42,M35) |
| Type | Round Dies, Open Mouth Dies, Adjustable Die;Machine Die,Hand Die |
| Standard | DIN(Metric Size/UNC/UNF/BSW/BSF),GOST 9740, ANSI standard. |
| Hardness | Alloy steel: HRC56-57, HSS4241: HRC59-61, HSS4341: HRC61-63, HSS
6542: 62-64 |
| Coating | TIN,TICN,TIAIN |
| Measuring | Metric and Inch |
| Application | For making outer threads; Adjustment screw allows die to be set for
different classes of fit.
Can be used to cut new threads or clean up existing threads |
| Business Type | Manufacturer |
2. Size
(1) Metric size:
| d1 | p | d2 | h1 |
|---|
| mm | (pitch) | (f9)
mm | mm |
|---|
| M 3 | 0,35 | 20 | 5 |
| M 3,5 | 0,35 | 20 | 5 |
| M 4 | 0,35 | 20 | 5 |
| M 4 | 0,5 | 20 | 5 |
| M 5 | 0,5 | 20 | 5 |
| M 6 | 0,5 | 20 | 5 |
| M 6 | 0,75 | 20 | 5 |
| M 8 | 0,5 | 25 | 9 |
| M 8 | 0,75 | 25 | 9 |
| M 8 | 1 | 25 | 9 |
| M 9 | 1 | 25 | 9 |
| M 10 | 0,5 | 30 | 11 |
| M 10 | 0,75 | 30 | 11 |
| M 10 | 1 | 30 | 11 |
| M 10 | 1,25 | 30 | 11 |
| M 11 | 1 | 30 | 11 |
| M 12 | 1 | 38 | 10 |
| M 12 | 1,25 | 38 | 10 |
| M 12 | 1,5 | 38 | 10 |
| M 14 | 1 | 38 | 10 |
| M 14 | 1,25 | 38 | 10 |
| M 14 | 1,5 | 38 | 10 |
| M 16 | 1 | 45 | 14 |
| M 16 | 1,5 | 45 | 14 |
| M 18 | 1 | 45 | 14 |
| M 18 | 1,5 | 45 | 14 |
| M 20 | 1 | 45 | 14 |
| M 20 | 1,5 | 45 | 14 |
| M 20 | 2 | 45 | 14 |
| M 22 | 1 | 55 | 16 |
| M 22 | 1,5 | 55 | 16 |
| M 22 | 2 | 55 | 16 |
| M 24 | 1 | 55 | 16 |
| M 24 | 1,5 | 55 | 16 |
| M 24 | 2 | 55 | 16 |
| M 26 | 1,5 | 55 | 16 |
| M 26 | 2 | 55 | 16 |
| M 27 | 1,5 | 65 | 18 |
| M 27 | 2 | 65 | 18 |
| M 28 | 1,5 | 65 | 18 |
| M 28 | 2 | 65 | 18 |
| M 30 | 1,5 | 65 | 18 |
| M 30 | 2 | 65 | 18 |
| ○ Ask Price and Deadline |
(2) Inch size(WHITWORTH THREAD)
| d1 | p | d2 | h1 |
|---|
| BSW | (pitch)
(G/Inch) | (f9)
mm | mm |
|---|
| W 1/8" | 40 | 20 | 5 |
| W 5/32" | 32 | 20 | 7 |
| W 3/16" | 24 | 20 | 7 |
| W 7/32" | 24 | 20 | 7 |
| W 1/4" | 20 | 25 | 9 |
| W 5/16" | 18 | 25 | 9 |
| W 3/8" | 16 | 30 | 11 |
| W 7/16" | 14 | 30 | 11 |
| W 1/2" | 12 | 38 | 14 |
| W 9/16" | 12 | 38 | 14 |
| W 5/8" | 11 | 45 | 18 |
| W 3/4" | 10 | 45 | 18 |
| W 7/8" | 9 | 55 | 22 |
| W 1" | 8 | 55 | 22 |
| W 1 1/2" | 6 | 75 | 30 |
| ○ Ask Price and Deadline |
3. Inch size(UNC):
| d1 | p | d2
(f9) | h1 |
|---|
| UNC | (pitch)
(G/Inch) | mm | mm |
|---|
| Nr. 4 | 40 | 20 | 5 |
| Nr. 5 | 40 | 20 | 5 |
| Nr. 6 | 32 | 20 | 7 |
| Nr. 8 | 32 | 20 | 7 |
| Nr. 10 | 24 | 20 | 7 |
| Nr. 12 | 24 | 20 | 7 |
| 1/4" | 20 | 25 | 9 |
| 5/16" | 18 | 25 | 9 |
| 3/8" | 16 | 30 | 11 |
| 7/16" | 14 | 30 | 11 |
| 1/2" | 13 | 38 | 14 |
| 9/16" | 12 | 38 | 14 |
| 5/8" | 11 | 45 | 18 |
| 3/4" | 10 | 45 | 18 |
| 7/8" | 9 | 55 | 22 |
| 1" | 8 | 55 | 22 |
| 1 1/4" | 7 | 65 | 25 |
| 1 3/8" | 6 | 65 | 25 |
| 1 1/2" | 6 | 75 | 30 |
| 1 3/4" | 5 | 90 | 36 |
| 2" | 4,5 | 90 | 36 |
| ○ Ask Price and Deadline |
(4) Inch Size(UNF)
| d1 | p | d2
(f9) | h1 |
|---|
| UNF | (pitch)
(G/Inch) | mm | mm |
|---|
| Nr. 4 | 48 | 20 | 5 |
| Nr. 5 | 44 | 20 | 5 |
| Nr. 6 | 40 | 20 | 7 |
| Nr. 8 | 36 | 20 | 7 |
| Nr. 10 | 32 | 20 | 7 |
| Nr. 12 | 28 | 20 | 7 |
| 1/4" | 28 | 20 | 7 |
| 5/16" | 24 | 25 | 9 |
| 3/8" | 24 | 30 | 11 |
| 7/16" | 20 | 30 | 11 |
| 1/2" | 20 | 38 | 10 |
| 9/16" | 18 | 38 | 10 |
| 5/8" | 18 | 45 | 14 |
| 3/4" | 16 | 45 | 14 |
| 7/8" | 14 | 55 | 16 |
| 1" | 12 | 55 | 16 |
| 1 1/8" | 12 | 65 | 18 |
| 1 1/4" | 12 | 65 | 18 |
| 1 3/8" | 12 | 65 | 18 |
| 1 1/2" | 12 | 75 | 20 |
| ○ Ask Price and Deadline |
3. Packing:
4. Why you choose us:
1. Low MOQ: Along with your promotional business very well.
2. OEM Accepted : We can produce any your design .
3. Logo: All products well packaged with or without labels , Customers required labels
and logos are acceptable
4. Good Service : Clients are our Friends
5. Stock : Standard hand taps ,machine taps are Rich in Stock .
6. Reasonable price:Best quality along with reasonable prices. Discount based on
Quantity
7. Good Quality :Quality can be guaranteed with the CNC Machine and our serious QC
.Good reputation in the market.
8. Payment Grading: You can pay 30% in advance first , then pay the rest 70% when we
finished the goods before shipping.
5. FAQ:
Q1: Do you have your own brand?
A1: Yes, the brand name is STARRY Tools, we can provide OEM
services to our customers as well.
Q2: What's your target market?
A2: We mainly focus on Europe and South America right now.
Q3: What is the biggest advantage compared to the rivals?
A3: We are one of the strongest HSS Cutting tools supplier in
China.
Q4: What is your MOQ?
A4: 500 pcs
Q5: What about the payment and delivery time?
A5: Delivery time: All items are ready in stock and can be sent
within one week.
Payment: T/T.
100% protection for product quality, on-time shipment and payment
Q6: Can I get some samples?
A6: Yes, we are honored to offer you samples for quality check at
your freight cost.
Q7: How does your factory do regarding quality control?
A7: Quality is priority. We always attach great importance to
quality control from the very beginning to the end of the
production. Every product will be carefully tested before it's
packed for shipment.
