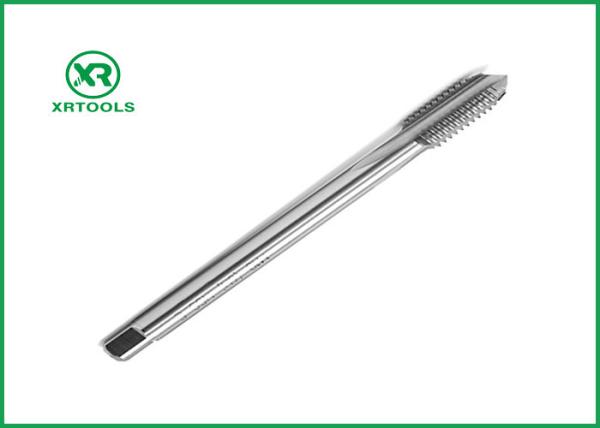

High Speed Steel Straight Flute Tap , DIN 376 Flat Bottom Tap For Drilling Machine

Jiangsu Xingrui Tools CO.,LTD
Contact Now
    Buy cheap High Speed Steel Straight Flute Tap , DIN 376 Flat Bottom Tap For Drilling Machine from wholesalers

    Buy cheap High Speed Steel Straight Flute Tap , DIN 376 Flat Bottom Tap For Drilling Machine from wholesalers
    • Buy cheap High Speed Steel Straight Flute Tap , DIN 376 Flat Bottom Tap For Drilling Machine from wholesalers

    High Speed Steel Straight Flute Tap , DIN 376 Flat Bottom Tap For Drilling Machine

    Ask Lasest Price
    Brand Name : STARRY
    Model Number : M3-M30
    Certification : ISO9000
    • Product Details
    • Company Profile

    High Speed Steel Straight Flute Tap , DIN 376 Flat Bottom Tap For Drilling Machine


    * Taper Taps: 6-8 pitches chamfered; Plug Taps: 4-5 pitches chamfered; Bottoming Taps: 2-3 pitches chamfered;

    * Size smaller than M6(incl.M6)No.1& No.2&No.3with 2 pointed ends,Size over M8(incl.M8) with 2 flat ends.

    * Tolerance: 6H,RH and LH.

    * Laser-printing on tap.


    1. Product Description

    High Speed Steel Straight Flute Tap , DIN 376 Flat Bottom Tap For Drilling Machine


    Product Name

    DIN376 STRAIGHT FLUTE TAPS

    Material

    High Speed Steel 4341 6542 M35 and so on

    Hardness

    HRC62-66

    Surface treatment

    White(We can supply differenk kinds surface treatment to you )

    Operation method

    Threading machine,CNC lathe,Milling and drilling machine,Lathe

    Application

    Suitable for through hole tapping of carbon steels and nonferrous metals whose chips are produced in continuous coil form.These taps discharge chips through the hole.


    2. size


    d1pL1L2d2k
    mm(pitch)mmmmmm(h12)
    mm
    M30,556102,2-
    M40,763122,82,1
    M50,870143,52,7
    M6180164,53,4
    M81,2590186,04,9
    M101,5100207,05,5
    M121,75110249,07,0
    M1421102611,09,0
    M1621102812,09,0
    M182,51253014,011,0
    M202,51403216,012,0
    M222,51403218,014,5
    M2431603418,014,5
    M2731603820,016,0
    M303,51804522,018,0
    Ask Price and Deadline.

    3. Application:

    Used for short screw -in length in through and blind hole. Suitable for threading in low-alloyed steels, cast, nodular cast iron, tempered, cast and the other metals.


    4. Packing and Deliver:




    5. Why choose us:

    1. Experience : We are a supplier of many brands in Germany. So we have the confidence to provide you with the best service.

    2. Quality Control : Quality Control System from STARRY Germany ensure our STARRY Factory's products and service QUALITY which have strict processing quality Control for every step.

    3. Service : We offer OEM&ODM service.and we accept trial order. If you find any problem. we'll find the suitable solution.

    4. Product : We have confidence in the quality of our products.and the product prices are also competitive.


    6. FAQ:

    Q1: Do you have your own brand?
    A1: Yes, the brand name is STARRY Tools, we can provide OEM services to our customers as well.

    Q2: What's your target market?
    A2: We mainly focus on Europe and South America right now.

    Q3: What is the biggest advantage compared to the rivals?
    A3: We are one of the strongest HSS Cutting tools supplier in China.


    Q4: What is your MOQ?
    A4: 500 pcs

    Q5: What about the payment and delivery time?
    A5: Delivery time: All items are ready in stock and can be sent within one week.
    Payment: T/T.

    100% protection for product quality, on-time shipment and payment

    Q6: Can I get some samples?
    A6: Yes, we are honored to offer you samples for quality check at your freight cost.

    Q7: How does your factory do regarding quality control?
    A7: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be carefully tested before it's packed for shipment.
